46 - NEW! The Complete PLCLearn Series, RSLogix500 for Micrologix Controllers, Volume I - PLUS Free Software on Memory Stick


This is Vol. #1 of This product includes a USB memory stick with product manuals and copies of free software available from Rockwell Automation... We offer this as a convenience FOR YOU!

Click on the following link to watch the lectures and discussions that support the lab projects in this set of manuals...

RSLogix500/Micro Starter Lectures...

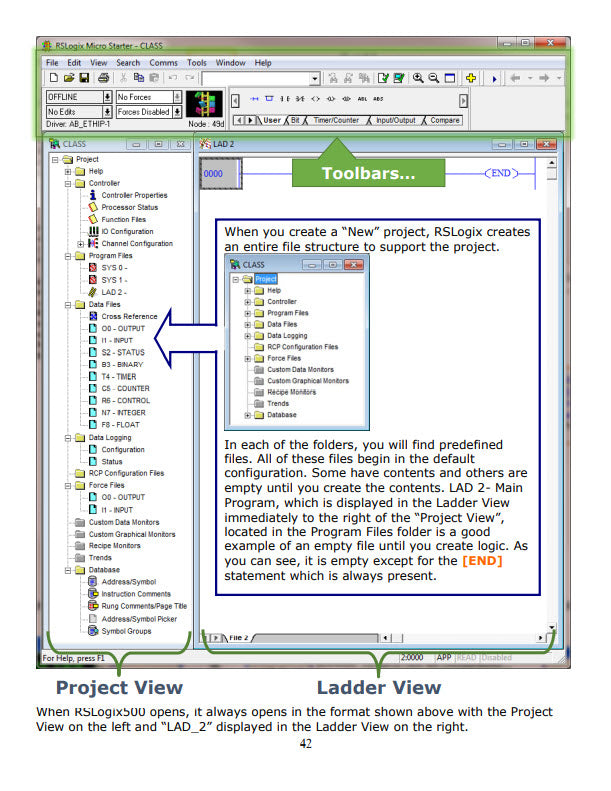

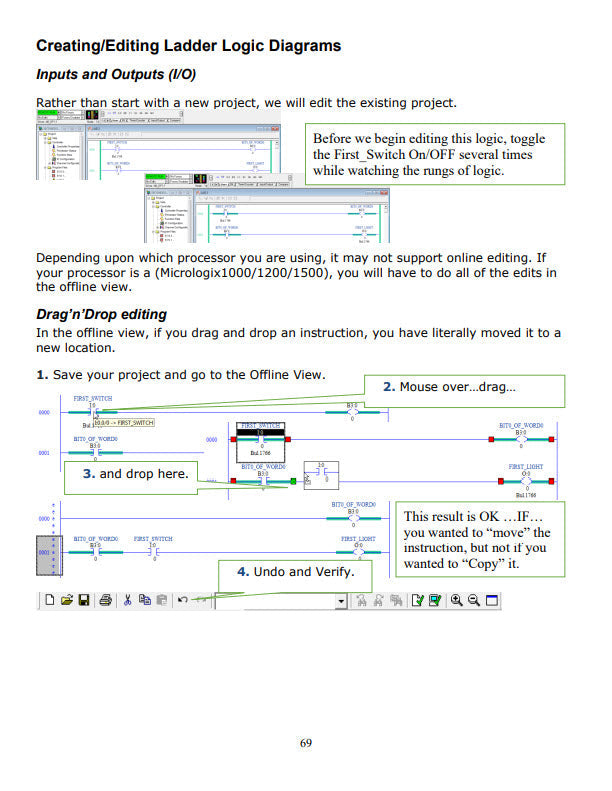

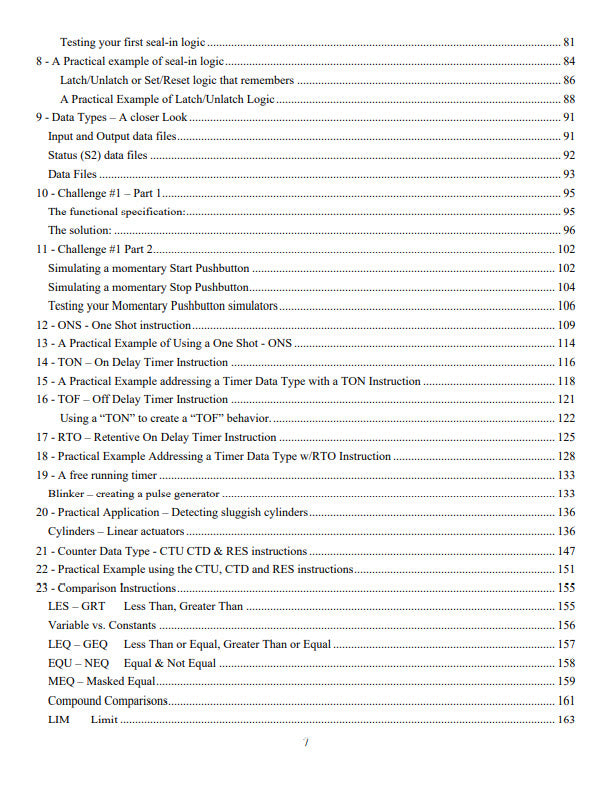

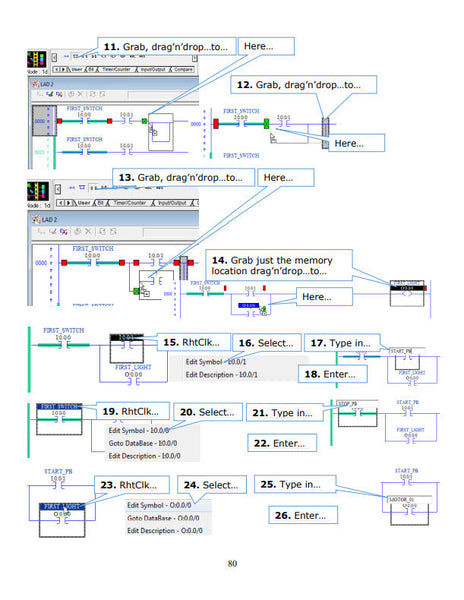

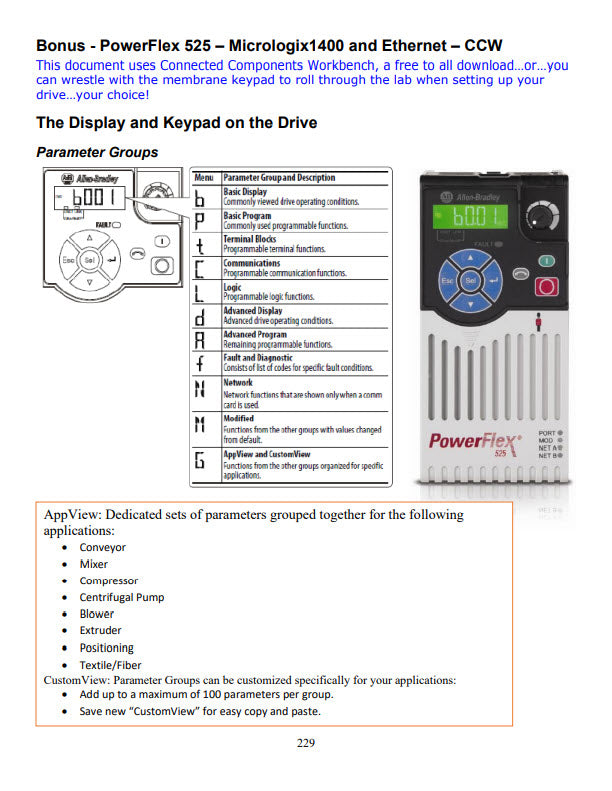

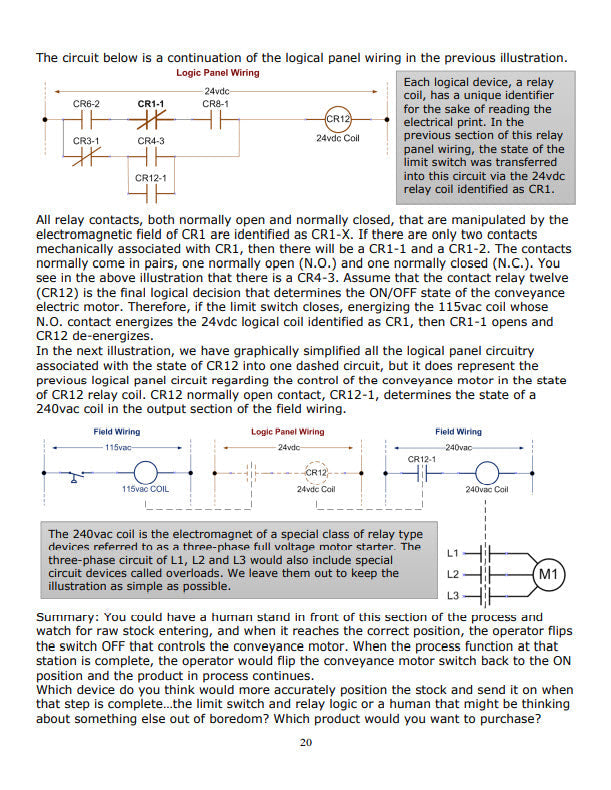

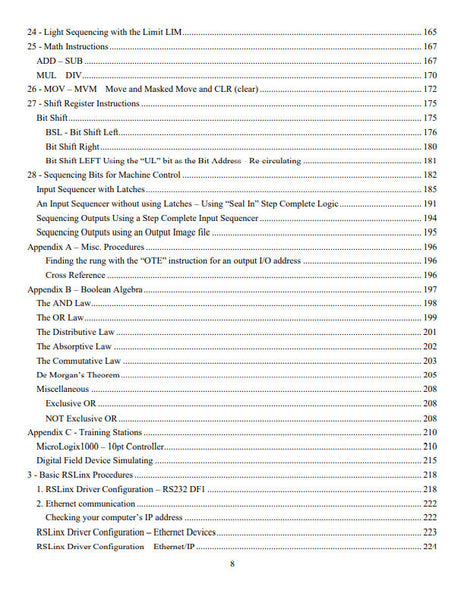

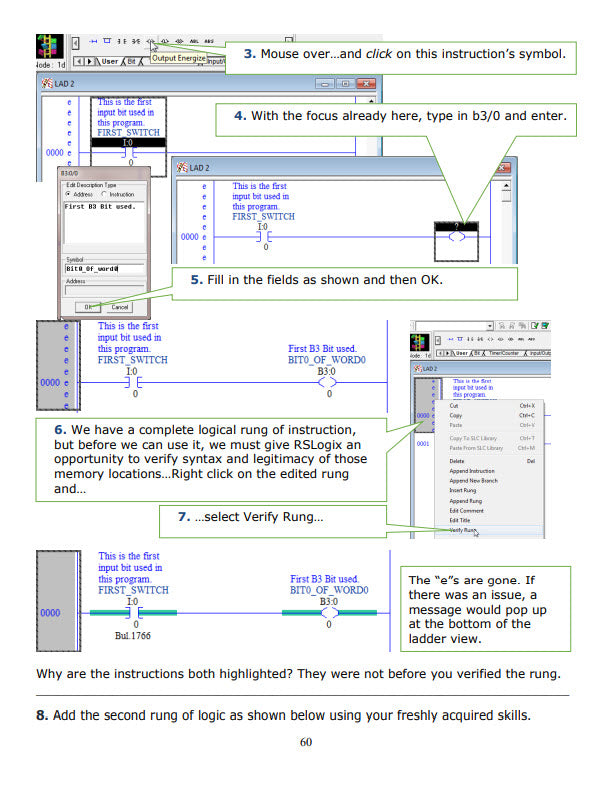

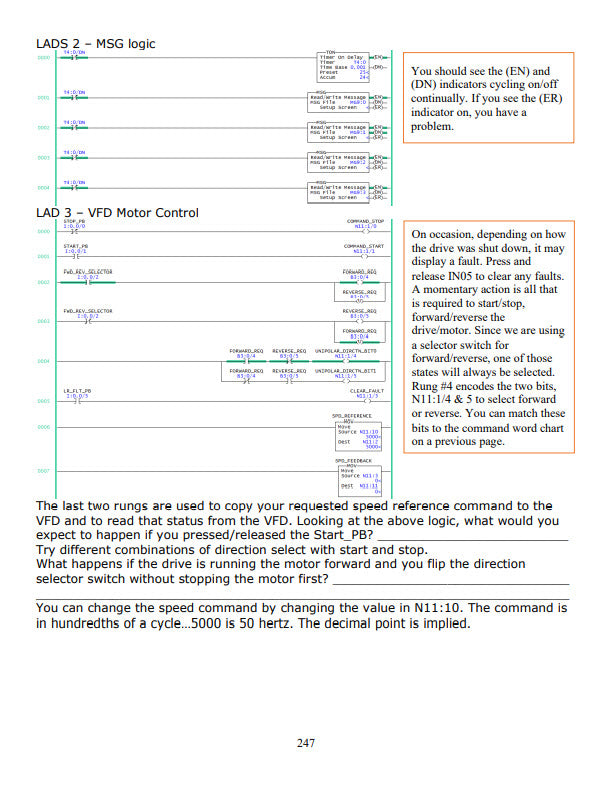

This is not identical to the former orange and black volume one. Projects have been added and some moved to volume two of this set.... developed specifically with the MicroLogix 1400 processor, the flagship of the MicroLogix family, but is compatible with all Micrologix controllers and can be adapted easily to SLC500 PLCs. 247 pages of full color step by step lab projects. Manual only...video lectures on YouTube (most of them free) and by paid subscription on Vimeo, cables and hardware are separate purchases.

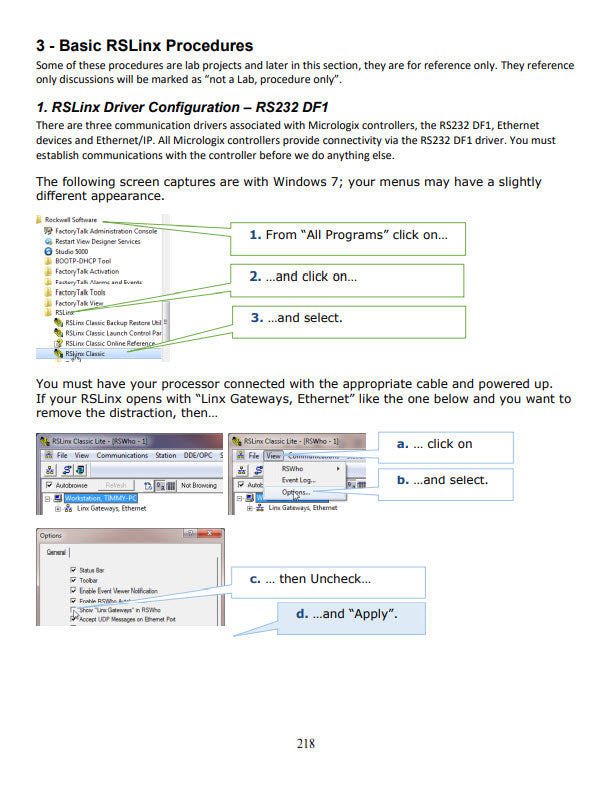

This manual can be used with SLC500 and all Micrologix controllers; 1000/1100/1200/1400/1500...the 1000 has a different one shot instruction than the others...

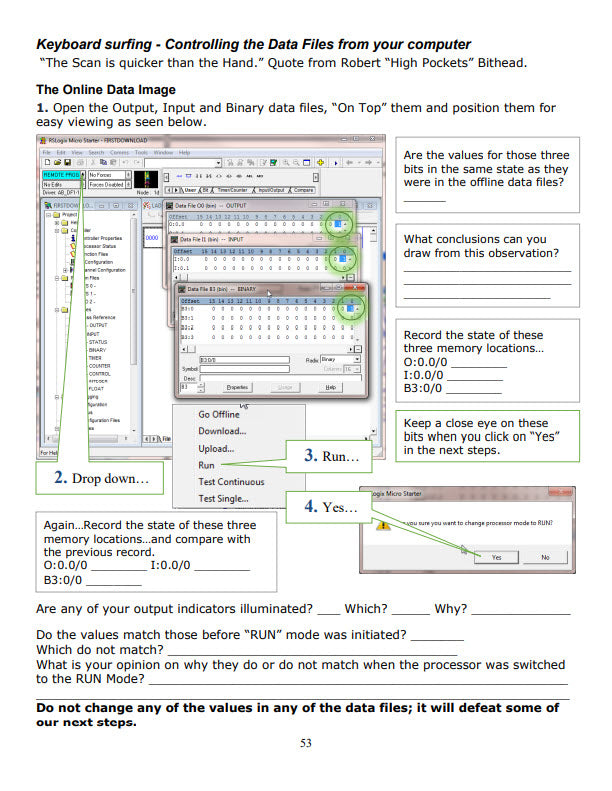

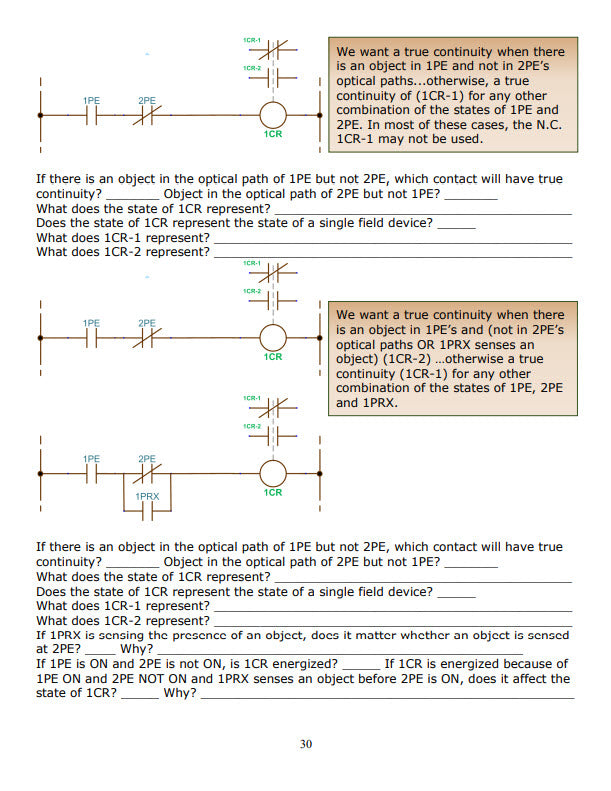

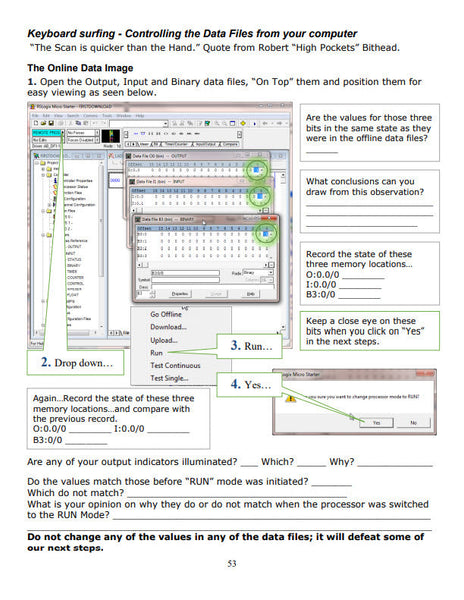

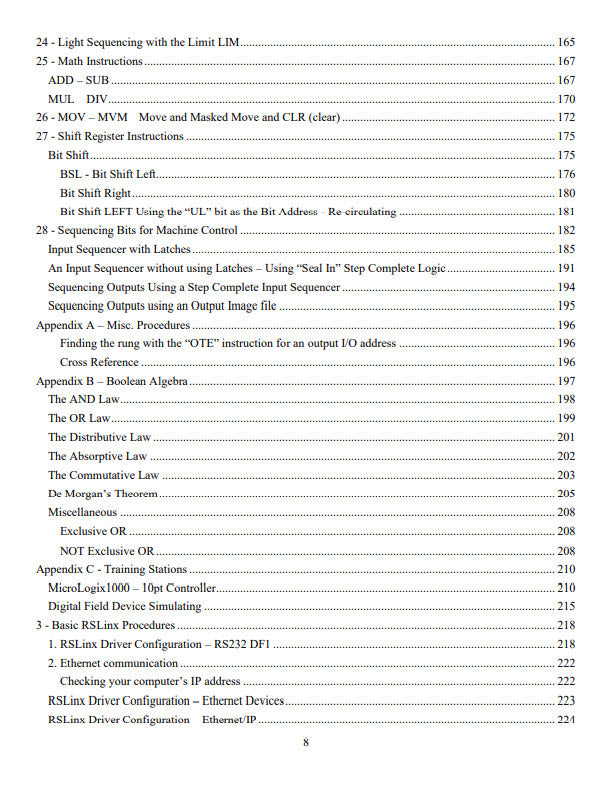

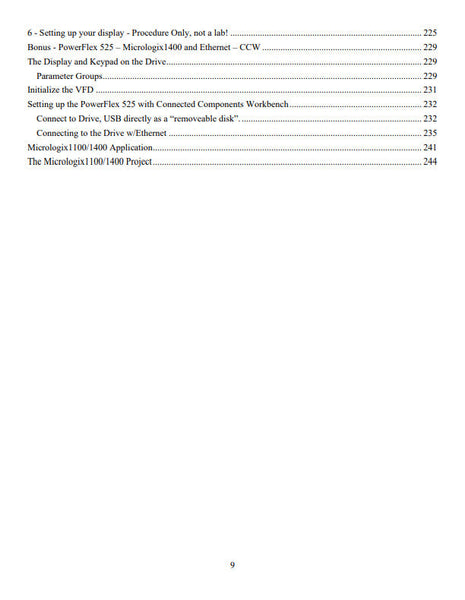

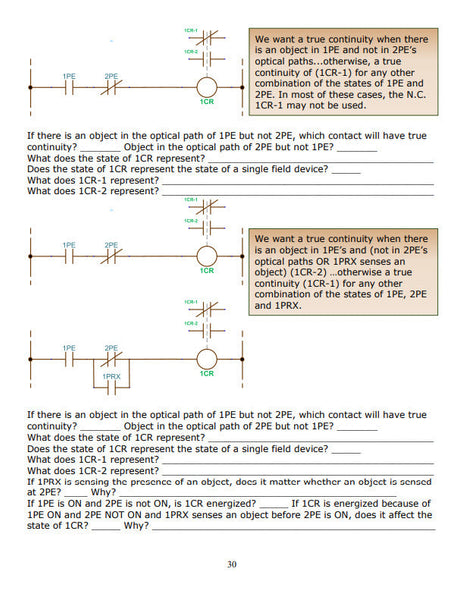

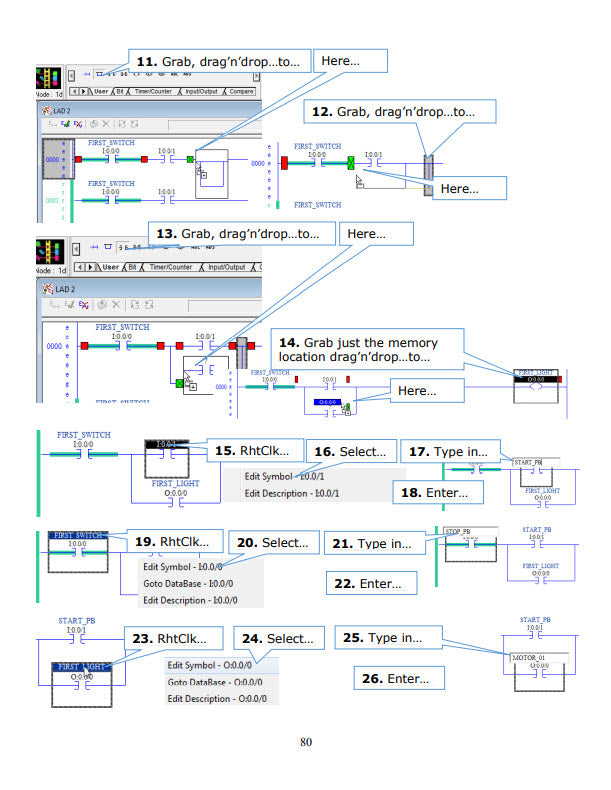

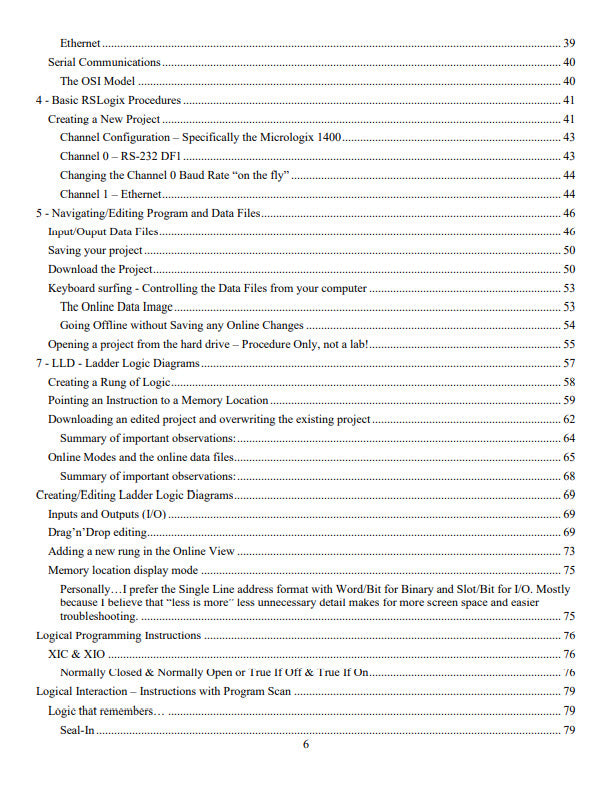

In addition to lab projects this manual includes many technical discussions that support the understanding of industrial automation.

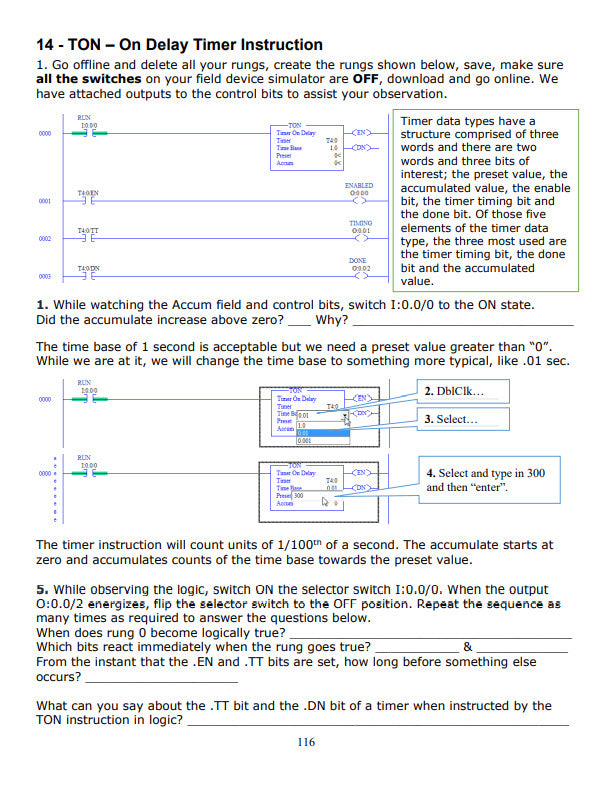

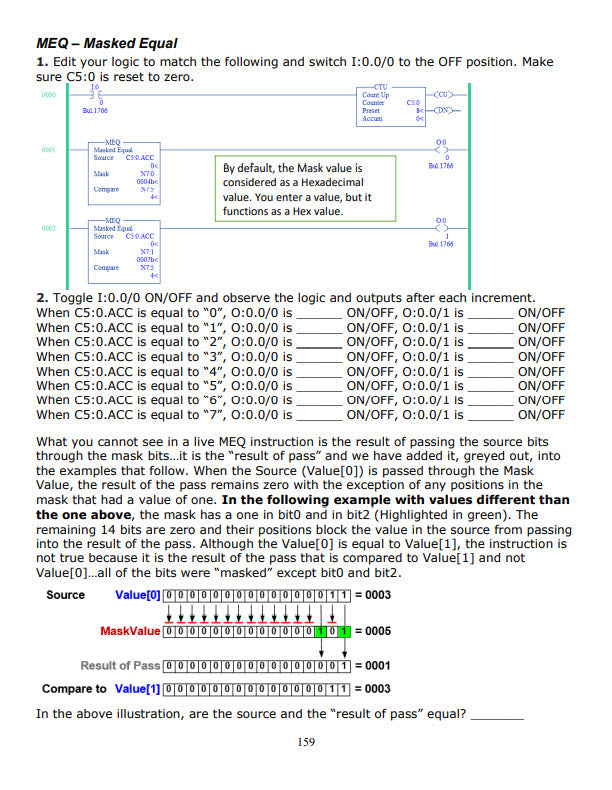

The five original instructions; XIC, XIO, OTE, OTL and OTU are well exercised throughout the manual. Timer and counter datatypes are integrated into practical applications using the TON, TOF, RTO, CTU, CTD and RES instructions. The practical programming challenges include the use of all of the comparison instructions; GRT, LES, GEQ, LEQ, EQU, NEQ, MEQ and LIM.

The basic math instructions; ADD, SUB, MUL and DIV are covered in more than one lab project as well as some of the practical programming challenges.

Data movement is demonstrated with the MOV and MVM instruction along with an in depth discussion of Mask values and how to use them.

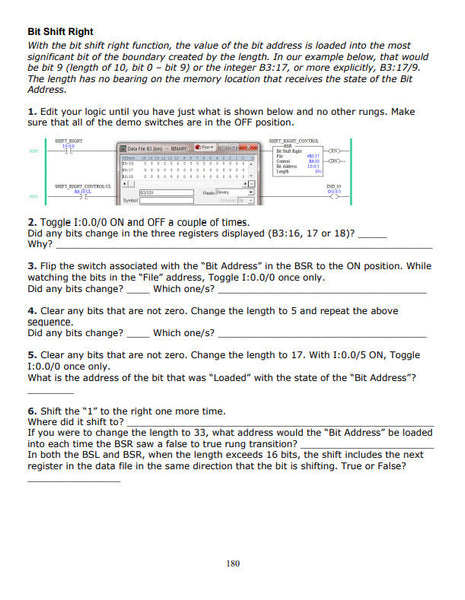

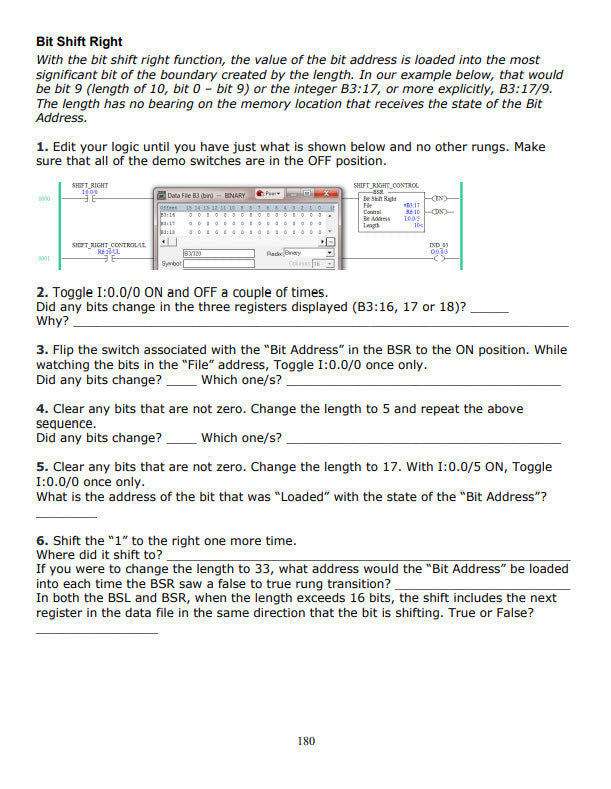

Bit shifting with the BSR and BSL instructions are given adequate coverage.

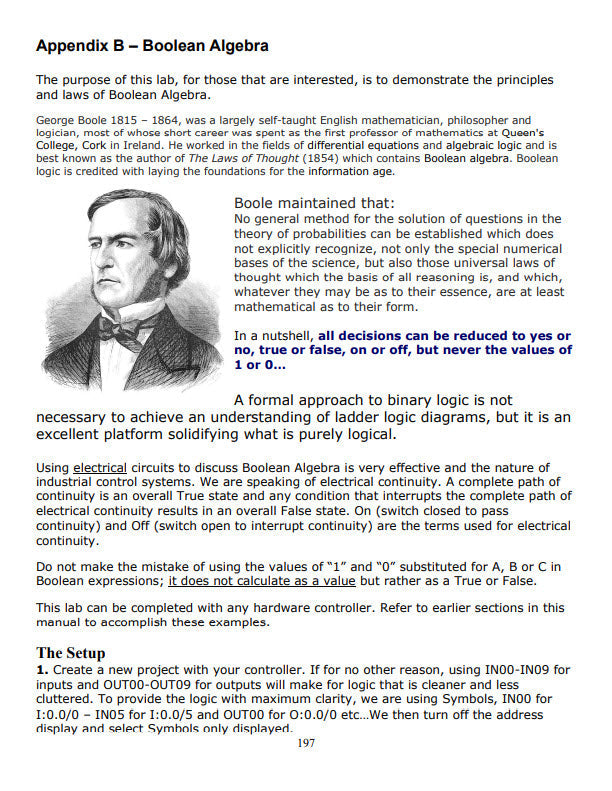

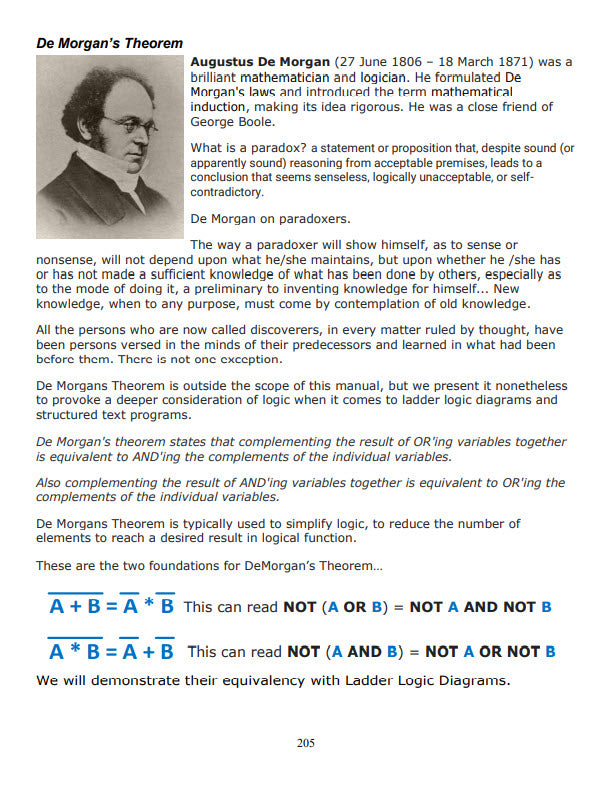

A comprehensive section, with lab projects, on Boolean Algebra.

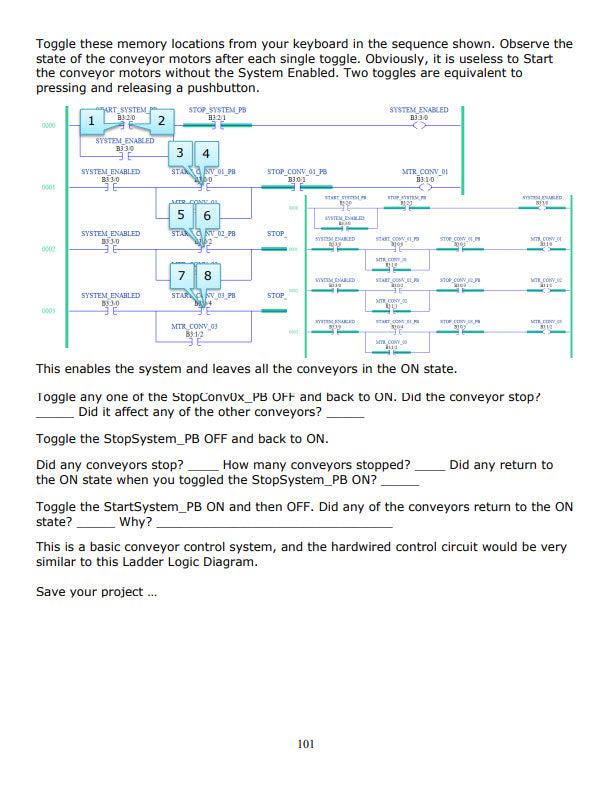

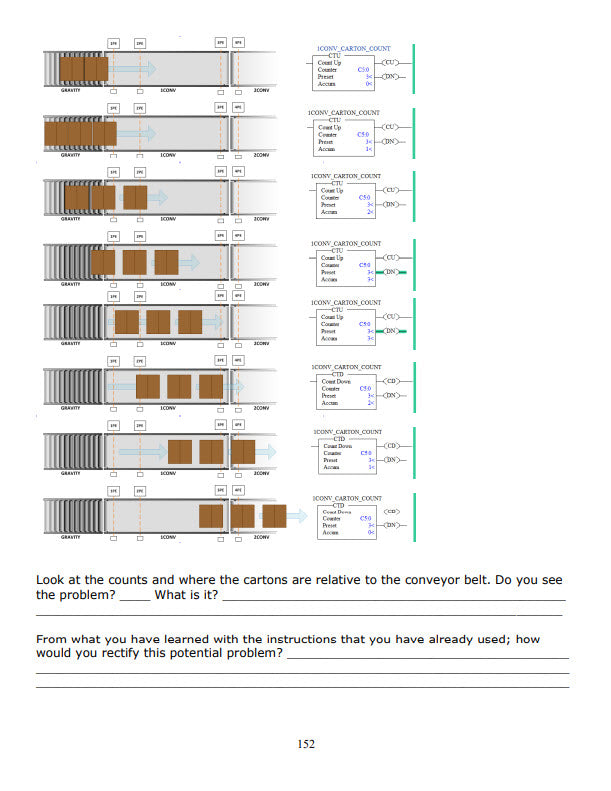

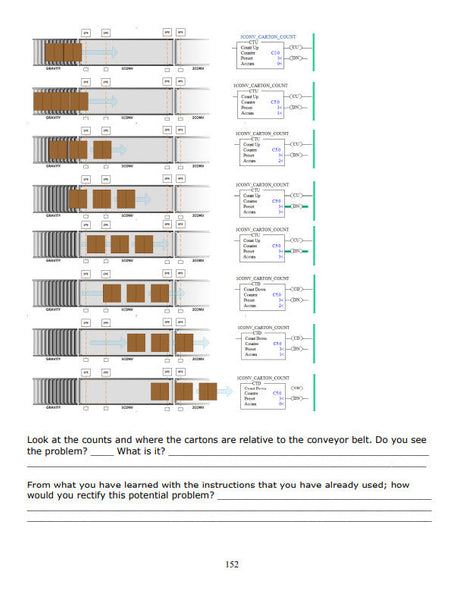

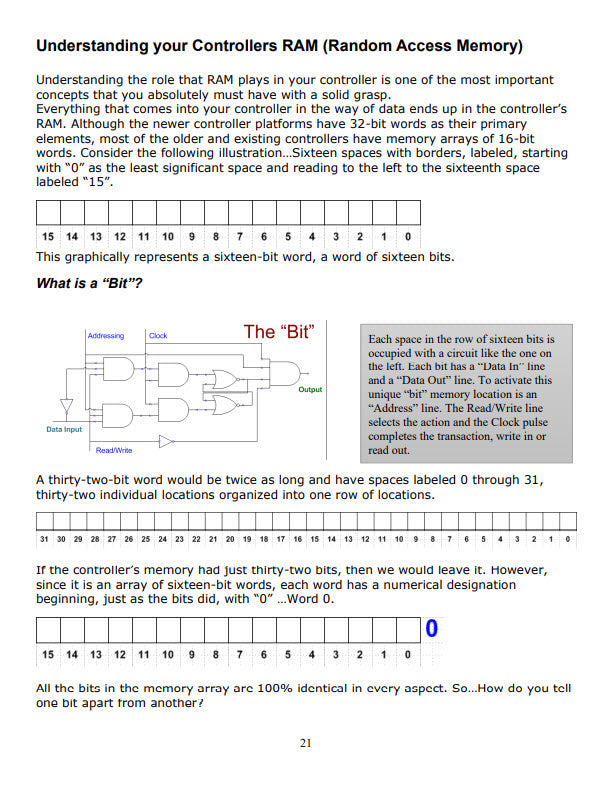

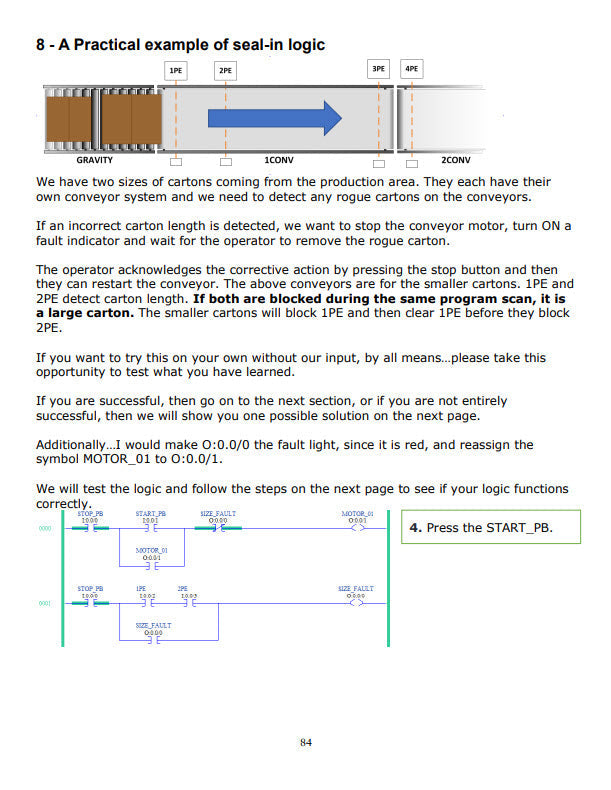

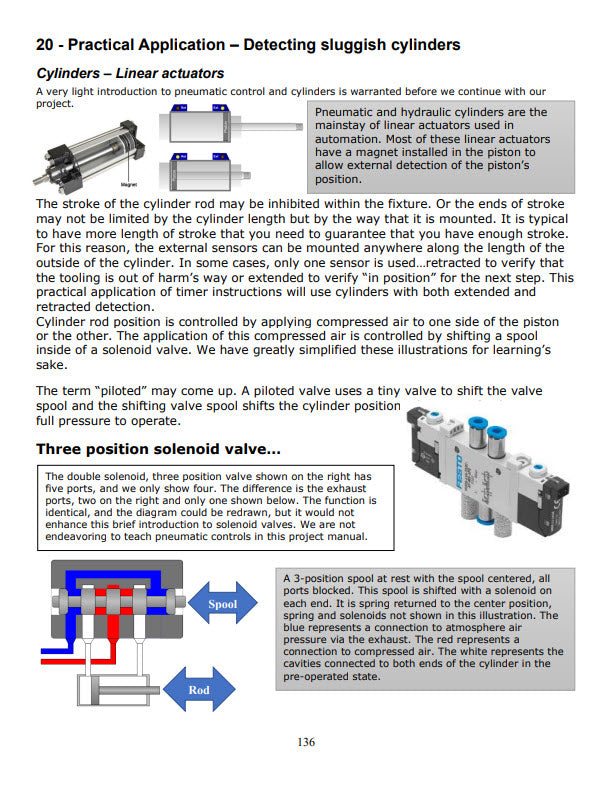

More than 100 pages of evolving programming strategies provide a good background in the most common programming techniques. Virtual processes are used to demonstrate many different styles of programming.

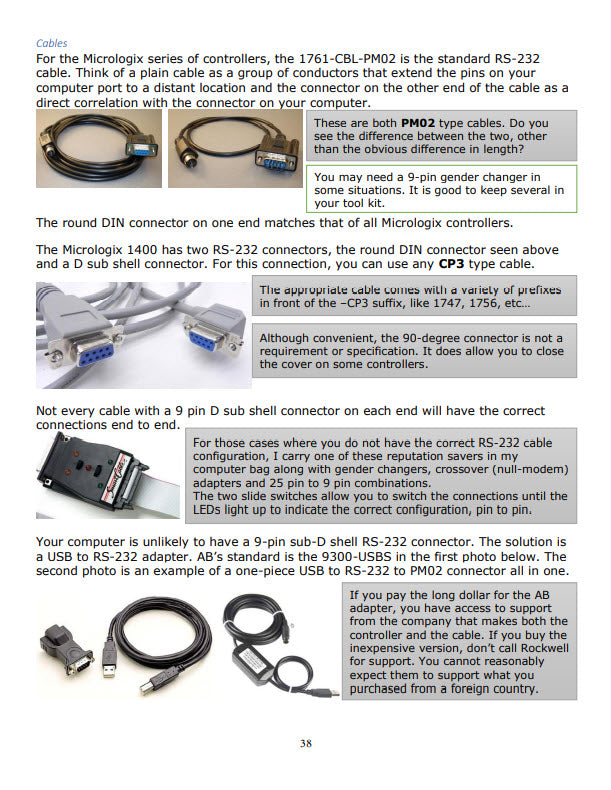

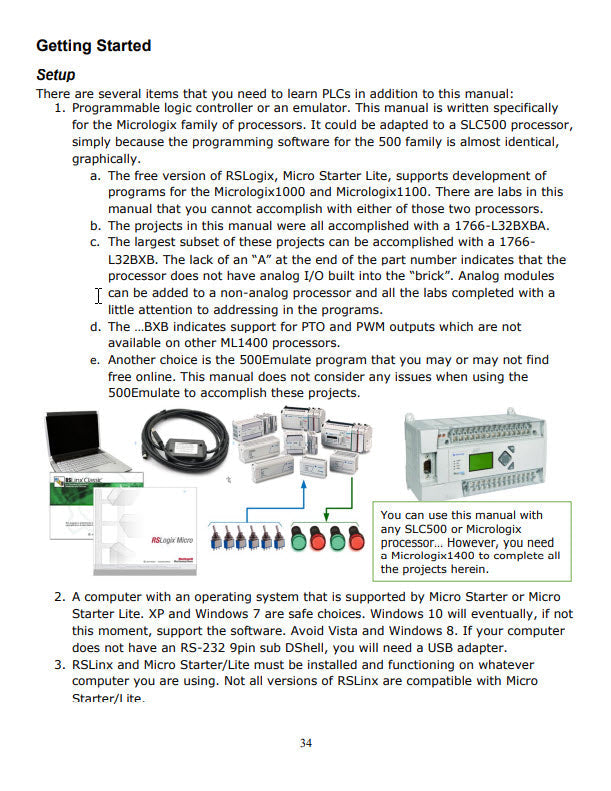

Although you can execute some of these projects with other Micrologix controllers, the optimum use of this manual will be the result of using a Micrologix 1400. The 1766-L32BXB or BXBA is the recommended controller.

It is recommended that you build your hardware learning station using our Digital Field Device Simulator. An image of the units that we use in live classroom delivery is shown. Kits can be purchased on this site; pre-built units are special order only. Request a quote.

This digital field device simulator has six enhanced 4 state inputs and six LED outputs behind the pushbuttons. The processor is a 1766-L32BXB with the PTO/PWM outputs landed on orange terminals for external usage. One of the high speed counters is connected to the white terminals for use with devices such as encoders. Two additional inputs and outputs are extended to the blue and green, respectively, terminals for external input and output field devices.
