57 - NEW!!! Part #2 Fundamentals of PLCs using Connected Components Workbench 3rd Edition w/Micro800 Controllers
NEW!!! 3rd Edition
If you want to learn CCW w/Micro800 controllers, you will not find a more cost effective path. This is just Part #2 of the third edition...It is the manual for the online course, Fundamentals of PLCs - Connected Components Workbench with Micro800 Pt2
Click on the following link to watch the lectures and discussions that support the projects in this set of Manuals...
Micro800 Controlers with Connected Components Workbench

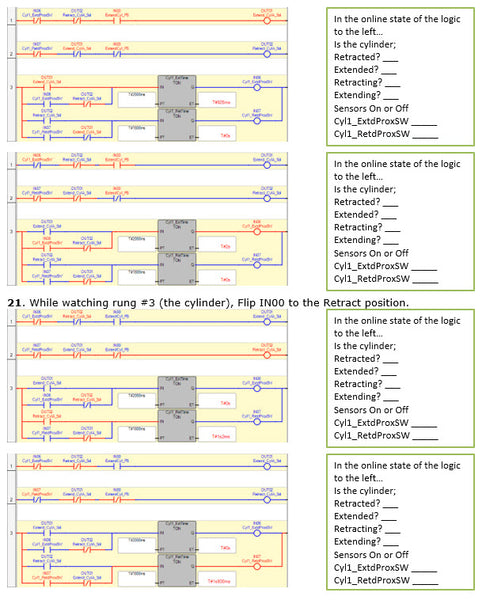

It includes all of the lab projects from the 1st & 2nd editions of Part #2 plus more, 305 pages full color, of practical content for Programmable Logic Controllers with step by step hands-on lab projects using Connected Components Workbench and the Micro800 family of Controllers. The lab projects are in three categories, characterization of instructions, practical examples and programming challenges. If you are new to programmable controllers or a RSLogix user, this is the manual for you and the Micro800 family of controllers.

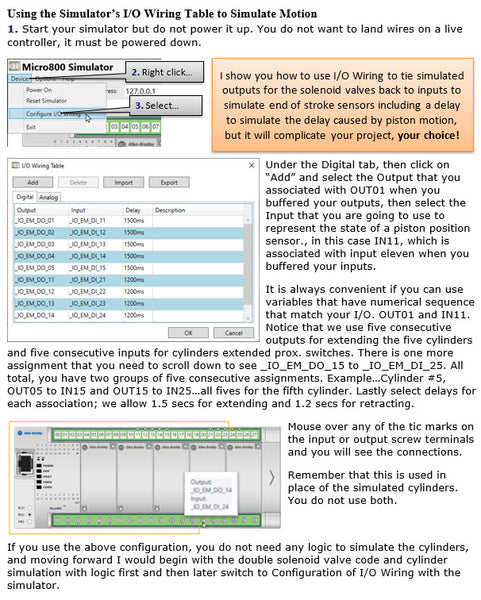

Includes lab projects with the new Simulator in V12.
The 2nd & 3rd editions include directives at the end of certain lab projects to the new volume for this learning path, a manual with projects for Panelview800 and PowerFlex525. You can use these manuals without that new volume on HMIs and VFDs., you just ignore the directives to that new volume.

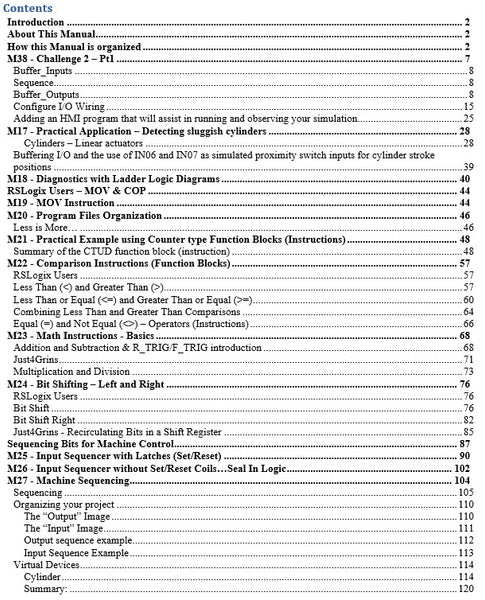

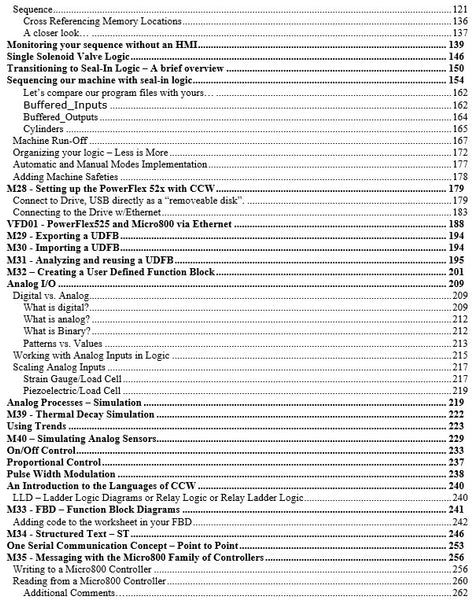

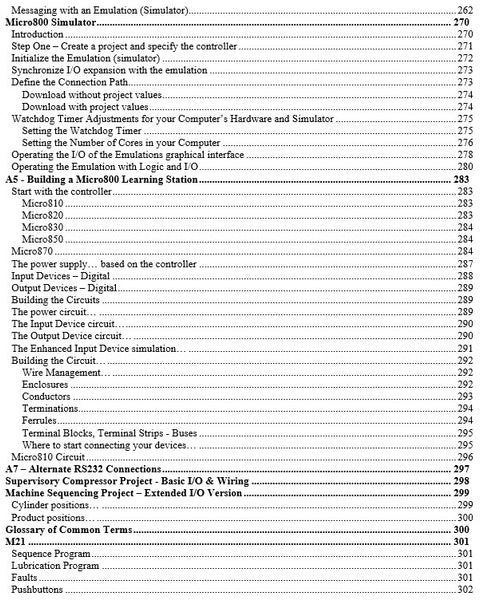

Look through the Table of Contents for a detailed list of topics.

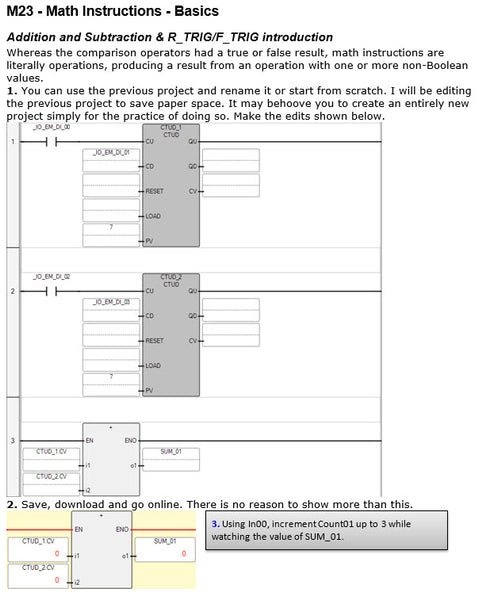

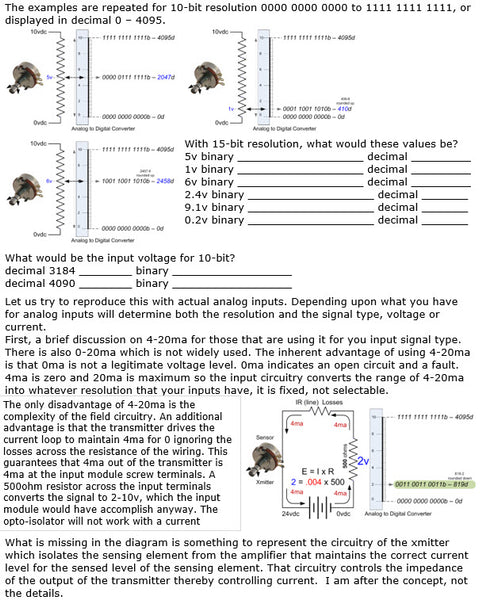

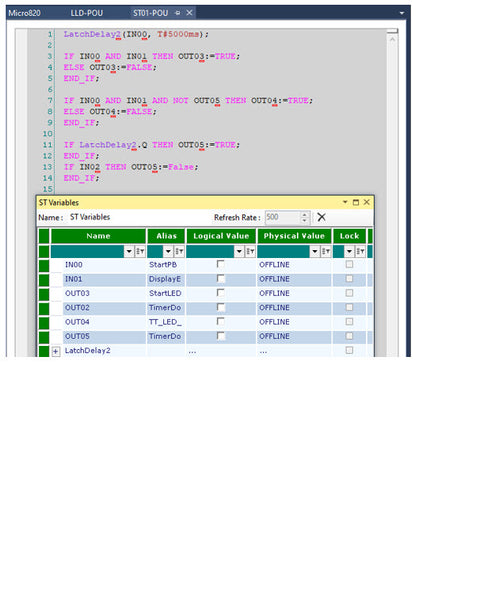

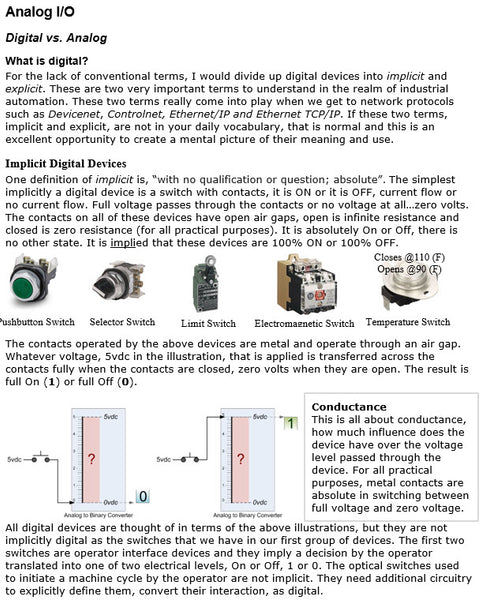

In addition to many practical applications with advanced instructions, Part #2 covers MOV, COP, Comparison, Math, Bit Shift Left/Right, sequencing with set/reset and seal-in logic, Powerflex525, UDFBs, Analog, analog simulation, Function Block Diagrams and Structured Text.
