26 - Universal Lab Station Stand - Vertical Back Frame - Add your own Controller-I/O and I/O Simulator


Allow 7-15 business days for delivery, we stock this item in limited quantities. Custom assemblies are available on request.

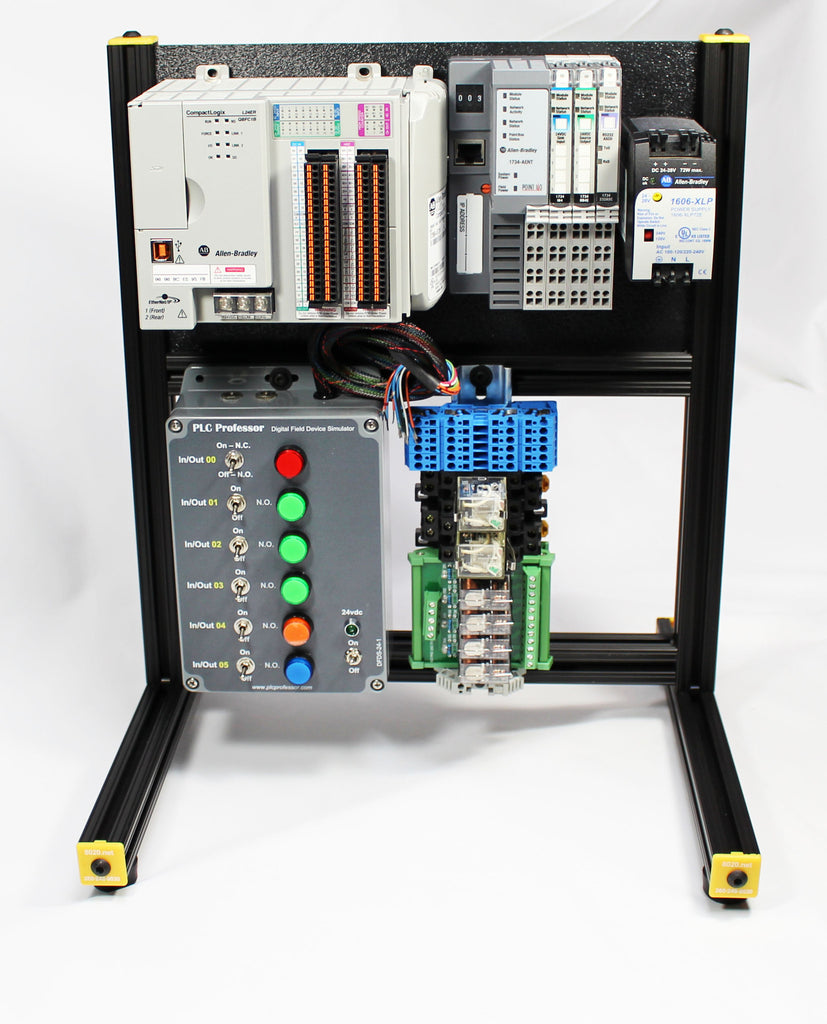

PLC/Controller hardware is not included with this stand. The photos are for example only. This universal lab station will accept any DIN rail mounted processor that will fit within the 12" width and 7.25" height. The DIN rail can be removed for mounting non-DIN rail chassis and processors.

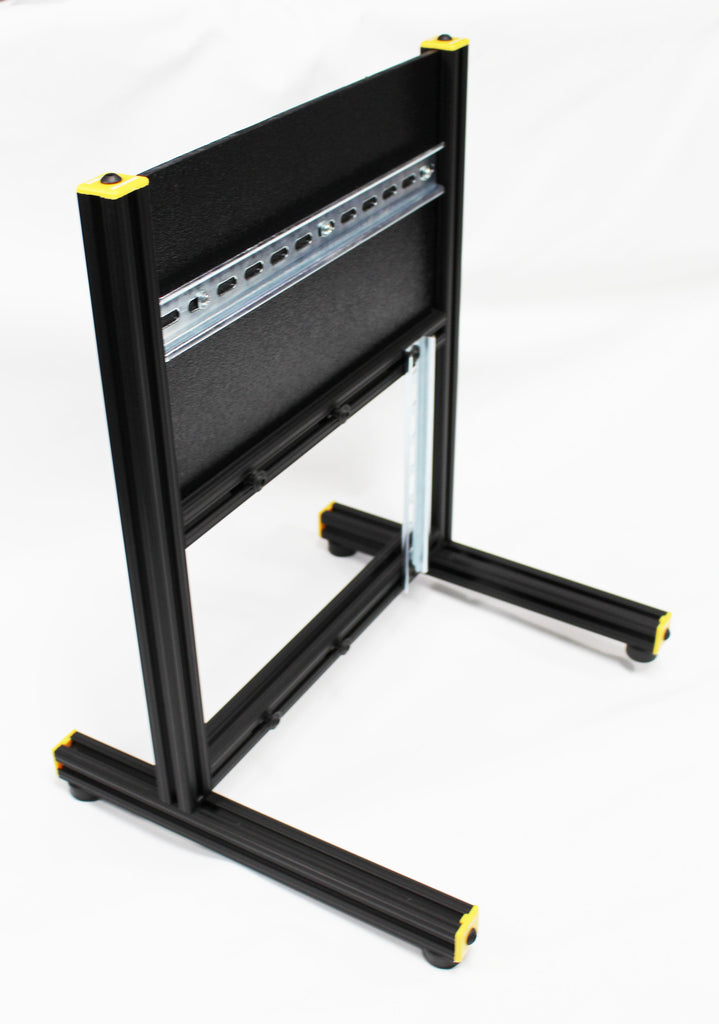

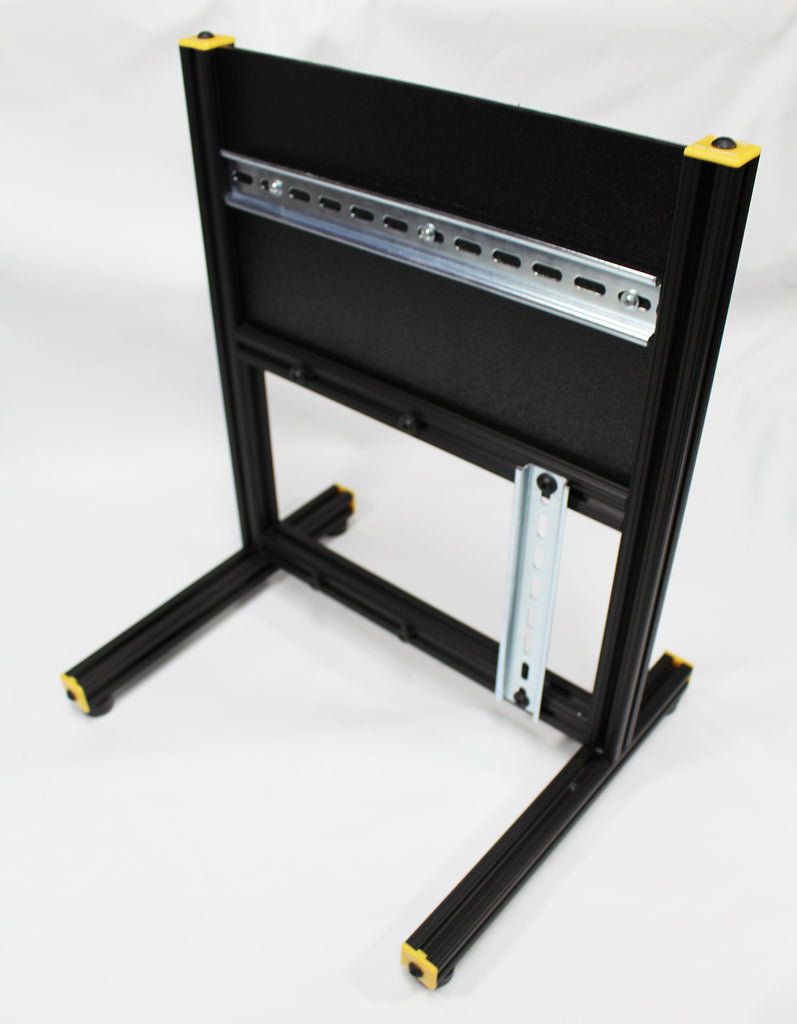

The stand comes standard with two DIN rails: a horizontal rail for mounting controllers, chassis, power supply and any DIN rail mounted hardware. The 8" vertical DIN rail can be relocated anywhere in the lower section. The vertical side extrusions will accept T-Nuts to allow horizontal mounted DIN rails in the lower section.

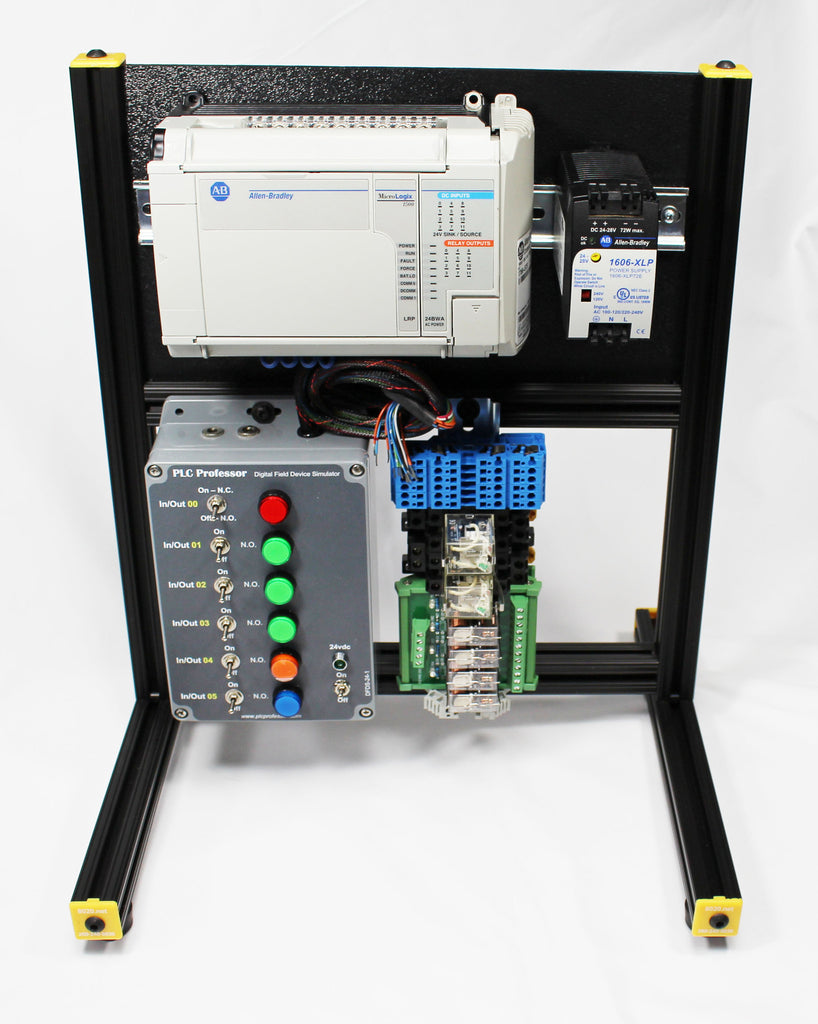

The standard stand comes with two pairs of slide nuts and bolts to accept the Digital Field Device Simulator and the Analog Field Device Simulator as shown in the gallery photos.

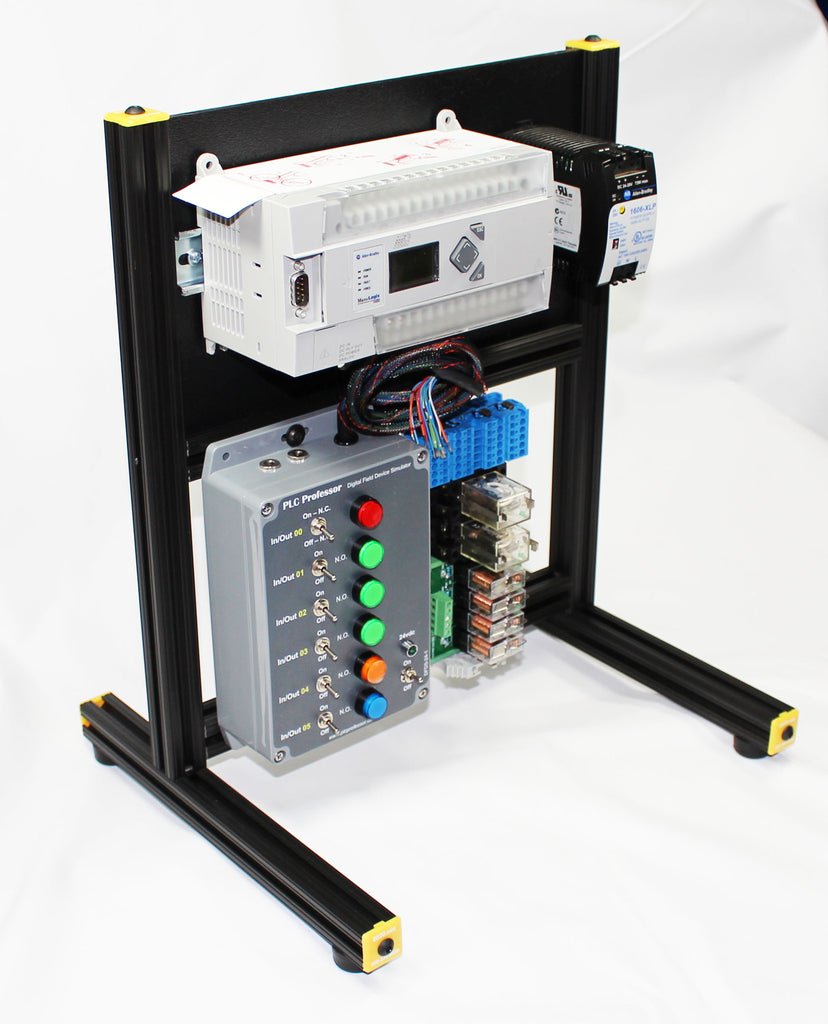

The vertical frame is shown in the off center/rear position, but it can be moved to the center of the base for controller hardware that has less depth than the examples shown.

The stand is assembled with very high quality black anodized aluminum extrusion. It can be completely disassembled with a set of Allen wrenches.

The base has four no-slip scuff proof rubber pads. The footprint provides a very high stability. It is very difficult to tip this stand over, even void of mounted equipment.

This station is available in other widths and heights upon request.
